VideoMax Mini Live Streamer with Recorder Box  -  Standalone
Works WITHOUT PC Laptops as well as WITH PC/Laptops also !!
Supports VMix and OBS Softwares for Capturing and Live Streaming
Record and Capture in USB Pendrive or HDD

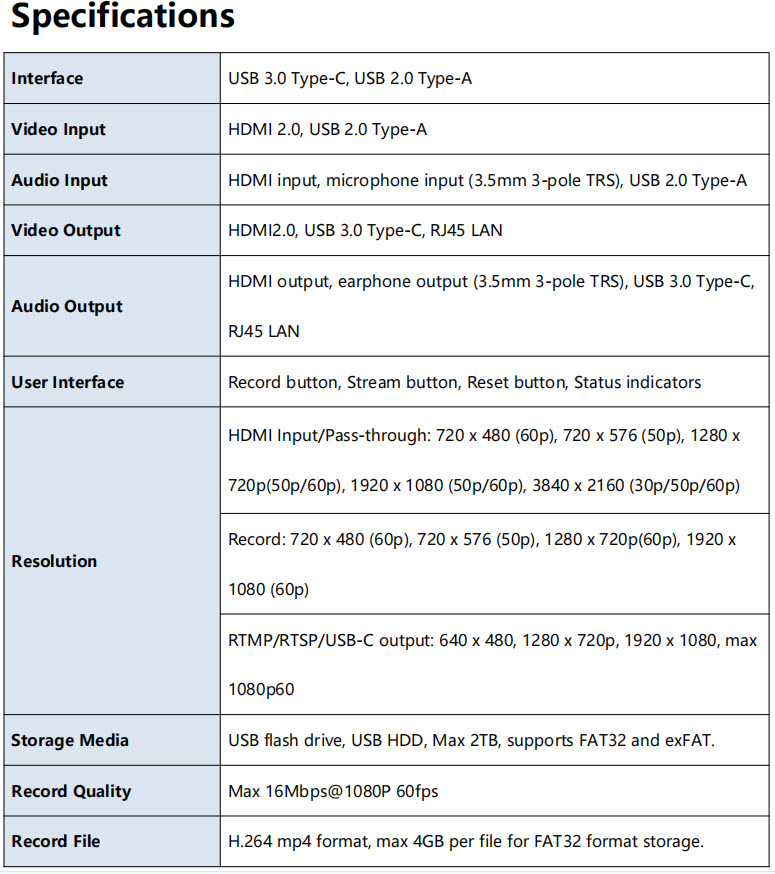

SPECIFICATIONS

- Interface: USB 3.0 Type-C, USB 2.0 Type-A
- Video Input: HDMI 2.0, USB 2.0 Type-A
- Audio Input: HDMI input, 3.5mm 3-pole TRS microphone input, USB 2.0 Type-A
- Video Output: HDMI 2.0, USB 3.0 Type-C, RJ45 network port
- Audio Output: HDMI output, 3.5mm 3-pole TRS earphone output, USB 3.0 Type-C, RJ45 network port
- User Interface: Record button, Stream button, Reset button, Status indicators
- Storage Media: USB flash drive, USB HDD, max 2TB, supports FAT32 and exFAT format.
- Record Format and File: H.264 mp4, max 4GB for per file, max 16Mbps@1080p60fps.
- Input / Pass-through Resolution: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p(50p), 1280 x 720p(60p), 1920 x 1080 (50p), 1920 x 1080 (60p), 3840 x 2160 (30p), 3840 x 2160 (60p)
- Record/RTMP/RTSP(LAN) Resolution: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p(50p), 1280 x 720p(60p), 1920 x 1080 (50p), 1920 x 1080 (60p)
- USB 3.0 Type-C Output Resolution: 640 x 480, 1280 x 720, 1920 x 1080
- USB 3.0 Type-C Output Video Format: NV12, H.264, MJPG, max 1080p60.
- Power Supply: USB Type-C, DC 5V2A, power adapter is not included
Rs.13,700/- Plus GST
One Time Payment, Warranty 6 Months
(Live to Stream to Multiple Platforms with Third Party MultiStreaming Services Providers)
VideoMax Streamer with Recorder not only can Record and Stream Video Standalone, but also can work as an UVC Video Capture Card to Live Stream with Titlings with  OBS, VMix from your Computer.
(Beta Testing On)
It can connect to your *Smartphone, Capture and Stream your  Video on your Computer. *Only supports iPhone and iPad.
Difference between Pocket Broadcaster and Live Streamer/Recorder Box
Streamer/Recorder Supports
Rs.13,700/- Plus GST
One Time Payment, Warranty 6 Months
Rs.13,700/- Plus GST
One Time Payment, Warranty 6 Months
Watch Recording Quality of VideoMax Mini Streamer with Recorder
Press Button to Start and Stop Live Streaming and Recording
https://youtu.be/IQD67ZHGuWI
One Touch Start And Stop Recording and Live Streaming !!
